GPS Input Set Up for the Nikon D1H and D1X

August 30, 2001--Moose Peterson

This feature works in concert with a GPS unit when a GPS unit is connected to the D1x, recording the GPS info in the EXIF file. You can preview the info on the Monitor when viewing an image. Once the GPS Input menu is accessed, you have the option of OFF or ON. This feature takes a lot of determination on your part to actually use. Neither Nikon or the GPS unit manufacturers make a connecting cable to hook up the D1x to a GPS unit. It's up to you to make the cable. Next, not all GPS units are "certified" by Nikon to work with the D1x. There are only two certified units at the time this was written, the Magellan ColorTrack and Garmin III. I honestly don't know what certified means but I do know other GPS units work with the D1x. The Garmin eTrek and III+ both work as well. I can provide some help in getting Garmin III+ to work with the D1x as that's the unit I use.

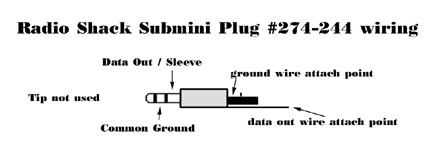

First, head to the Garmin website www.garmin.com and look up the accessories for your particular unit (probably can do this for other brands, I've just not tested others). Once on the accessories page head to cables. You need to order the Power Data Cable for your unit. It has the connector for your GPS on one end and bare wires on the other. There are four bare wire, the brown wire is the data out and the black is the common ground. These are the two leads required to make this thing work. Lastly, you need to have the 2.5mm jack, I used Radio Shack's sub-mini Plug #274-244. With that in hand, you solder the black wire to the "ring" and the brown wire to the "sleeve." See the Illustration below for how this works.

With the GPS Input activated on the Set Up Menu, you're almost there. You must set your GPS unit so the transfer is NMEA (4800bps) and the units are hddd mm ss.s. You do anything else and it will not work! With this all accomplished, a small D appears above the shutter speed on the Top LCD Panel. The D does not appear instantly, only appears once the GPS and the D1x are talking to each other which takes a few moments.

I personally think this is a really cool feature and for my work, makes life a whole lot easier!
